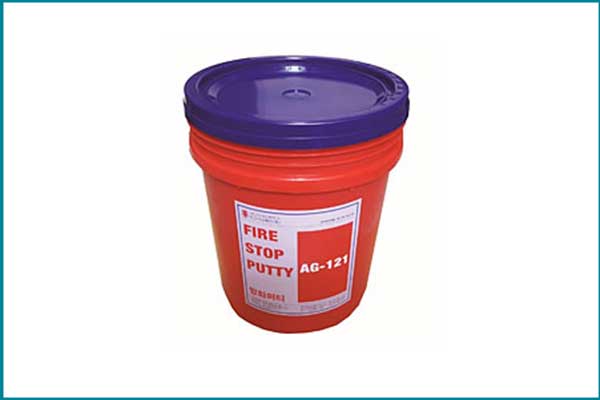

Fire prevention putty (curtain wall)
(AG-121)


Main Advantages 1. High elasticity, excellent sound insulation and adhesiveness.
2. Convenient installation. (installed using brush, putty knife, and spray gun)
Feature 1. Fire-resistant structure is approved, and its management standards are certified.
2. Environment-friendly product. (contains no halogen and solvent/water-soluble)
3. Provides excellent smoke-proofing and sound insulation. (blocks smoke, gas, water, and sound)
Technology
Volume 19L
Construction temperature +5ºc ~ +32ºc
Resistance temperature after curing +20ºc ~ +100ºc
Temperature for transport and storage +0ºc ~ +30ºc
Curing time 3~5 days (3mm or 5mm before drying)
PH 7~10
Elasticity Around 50%
Expiration date after manufacture 12 months (when storing at 20ºc in a dry place)

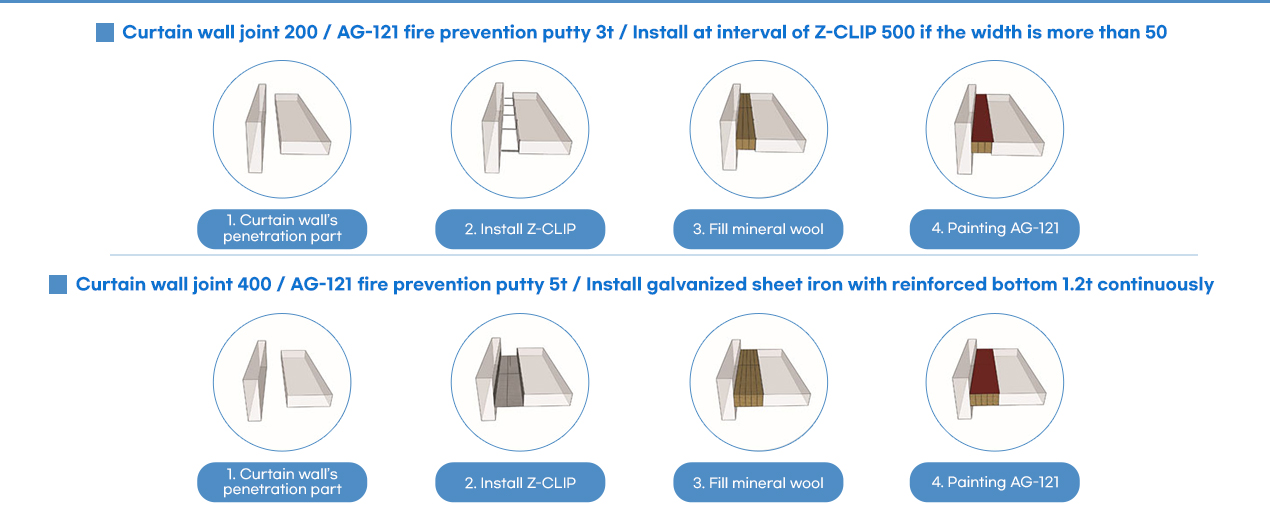

Instruction


Pipe size, location, and type Curtain wall linear Joint less than 200mm
Pipe size, location, and type Curtain wall linear Joint less than 400mm
Filling material Mineral wool
Filling material Mineral wool
Fire prevention putty AG-121 thickness 3T
Fire prevention putty AG-121 thickness 5T
Z-CLIP Install galvanized sheet iron 1.2t thick and 50m wide at an interval of 500mm
Z-CLIP Install galvanized sheet iron with reinforced bottom of 1.2t continuously
Location of construction Curtain wall's penetration part
Location of construction Curtain wall's penetration part
Structure grade C-2 (Lightweight foam concrete wall for 2 hours)
Structure grade C-2 (Lightweight foam concrete wall for 2 hours)
