Electricity

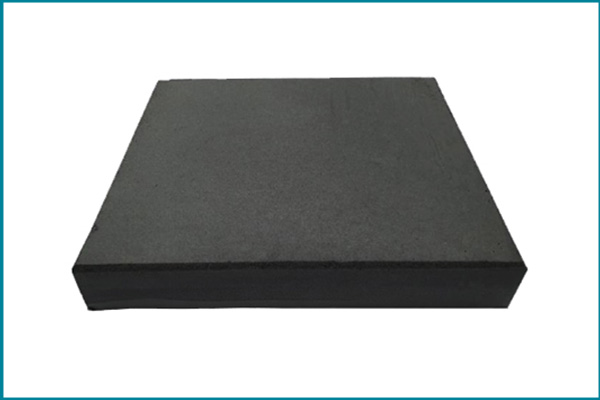

Fire prevention epoxy foam pad
(AG-EC101)


Main Advantages 1. Purpose : Fireproof filling compound for cable’s penetration part
2. This product is made of epoxy material with good elasticity and easy to cut.
3. Provides excellent fire prevention performance.
Feature 1. Provides excellent smoke-proofing, thermal insulation, and sound insulation.
2. Excellent for filling gaps with elasticity.
Specification 900MM*600MM*75T
900MM*600MM*50T

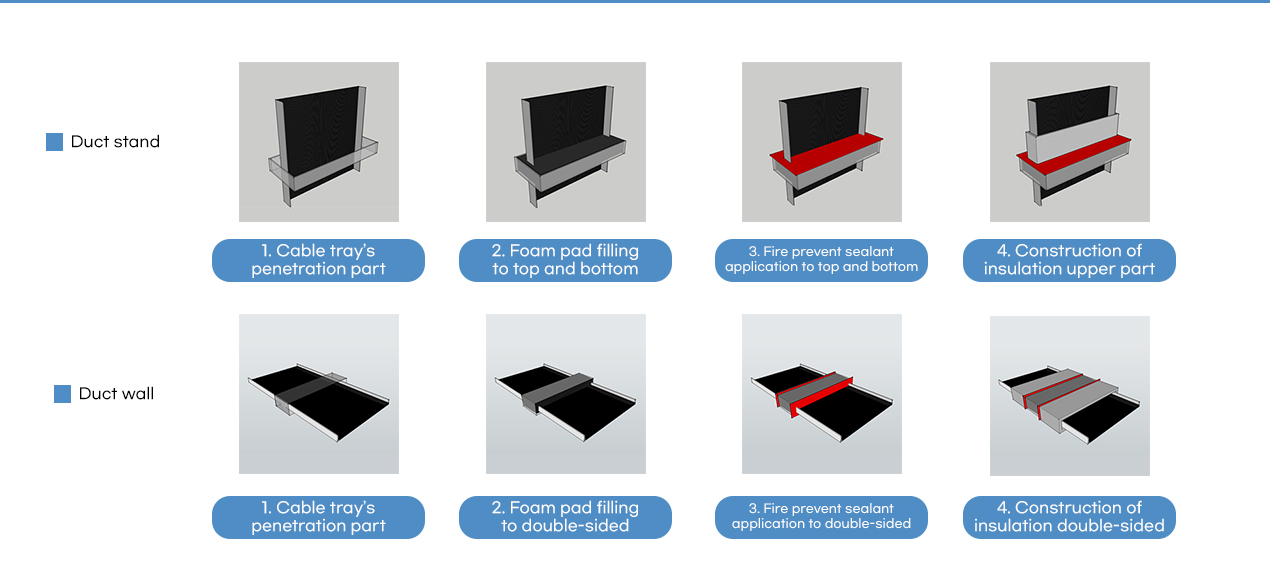

Instruction


Pipe size, location, and type Cable penetration part floor Pipe size, location, and type Cable penetration part wall
Filling material AG-EC101 (75mm) Filling material AG-EC101 (75mm)
Fire prevention sealant AG-1119 thickness on both sides 3T Fire prevention sealant AG-1119 thickness on both sides 3T
Location of construction Top and bottom construction Location of construction Double-sided construction
Structure grade C-2 (Lightweight foam concrete wall for 2 hours) Structure grade A-2 (Lightweight Steel Structural Walls for 2 hours)

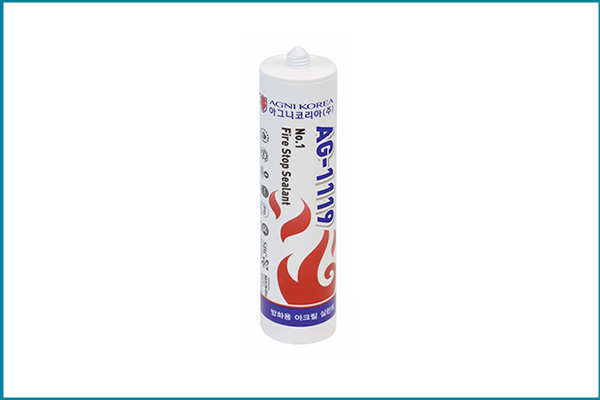

Fire prevention acrylic sealant
(AG-1119)


Main Advantages 1. The neutral hardening type of silicon material provides excellent durability/cold resistance/noise effect.
2. Excellent contraction and expansion capability, long-term sealing performance and excellent fire protection.
3. Used for equipment penetration materials (cables, pipes, ducts, etc.) that penetrate the fire prevention compartment.
Feature 1. It is liquid and can be sealed perfectly even in curved areas.
2. More than 20 years of durability with silicone material.
Technology
Volume 300ml
Color Black, gray
Surface curing time Around 15 minutes
Total curing time 7~14 days
Maximum elongation 500~600%
Expiration date 12 months (When stored at room temperature)
Curing form 20~25 (Shore A)
Tensile strength 10~15 kgf/㎤
Specific gravity 1.32±0.03g/㎤

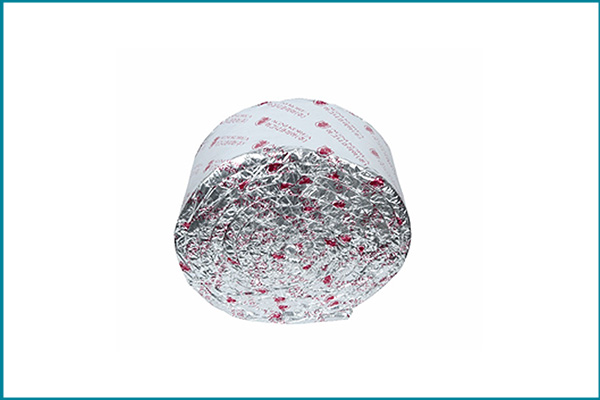

Heat insulation
(AG-400)


Main Advantages 1. Used as the main material for refractory filling structures of cable trays, metal pipes, and ducts.
2. Reliable and excellent heat shielding performance even at ultra-high temperatures above 1000˚C
3. Strong heat insulation effect blocks heat in case of fire, preventing secondary fire and preventing fire from spreading.
4. Using only proven raw materials, stable and uniform product performance.
Specific 13T*300MM*14.4M
13T*600MM*14.4M

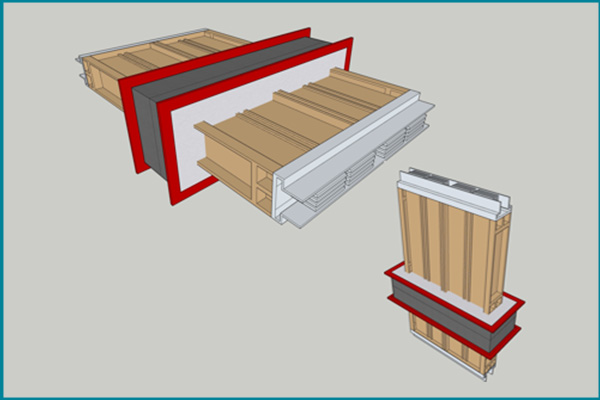

Cable tray
(Busduct)


Main Advantages 1. Can transfer a lot of energy from the same volume of conductors.
2. Very economical by minimizing energy loss.
3. Because it is assemblable, wiring can be done according to the construction process, and construction period can be reduced.
4. Vibration and fire resistant, flexible with loading, less electromagnetic waves, and recyclable.

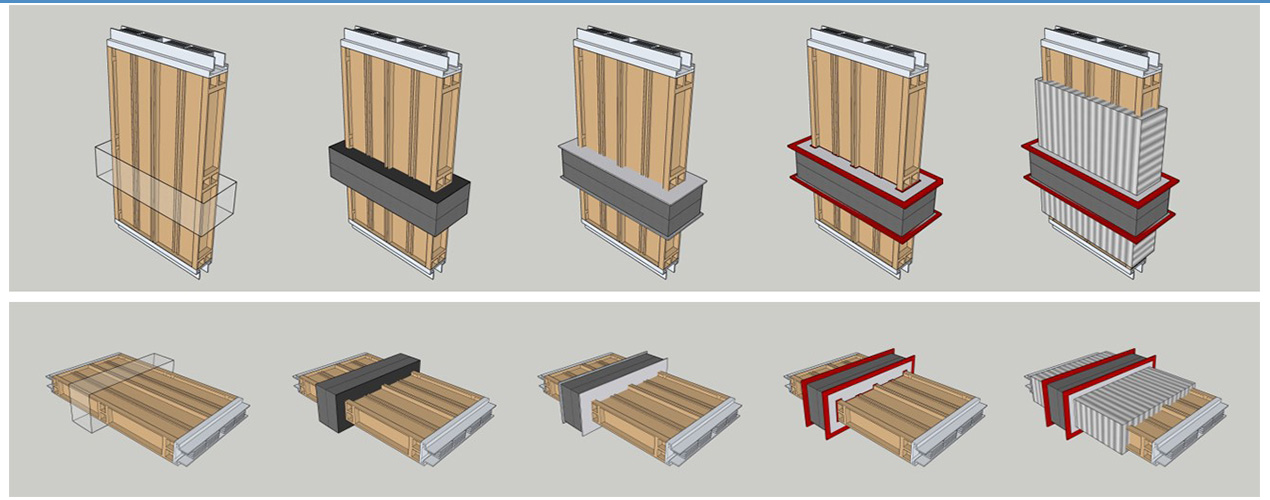

Floor & wall


Pipe size, location, and type Busduct penetration part floor Pipe size, location, and type Busduct penetration part wall
Filling material AGF911(75mm) Filling material AGF911(75mm)
Fire prevention sealant AG-1119 thickness on both sides 3T Fire prevention sealant AG-1119 thickness on both sides 3T
Hermal insulation material AG-400(25t*400mm) Hermal insulation material AG-400(25t*400mm)
Location of construction Top and bottom construction Location of construction Double-sided construction
Structure grade C-2 (Lightweight foam concrete wall for 2 hours) Structure grade A-2 (Lightweight Steel Structural Walls for 2 hours)
Test Result No. TPP-2019-003797 Test Result No. TPP-2019-003798
CFEL-K-2020-00688-1
